The most powerful ultra bike on the market (100% customizable)
LMX 56
More than a bike.
An ultra-bike with throttle.
45 km/h
Go to the top speed
2500 W
Outstanding engine performance
1000 Wh
Exceptional offroad autonomy
Open the way,
Outride your friends,
Boost your performance.
Ride harder, faster. Climb longer and longer. The ultimate goal of any rider.
Overpowered and connected, the powerful LMX 56 electric bike offers you exceptional and unique riding sensations, halfway between a bicycle and a motorcycle.
You’ve never experienced anything like it, and neither have your friends!
The most powerful electric bike with a throttle on the market
Ebike agility, motorcycle freedom
The LMX 56 has both pedal assist and a handlebar throttle.
This unique dual assistance system allows you to surpass yourself during your sports outings and to reach 45 km/h to overcome all obstacles.
Versatility is at the heart of this powerful speedbike. It’s ideal for riders looking for the freedom of a motorcycle while still enjoying the maneuverability of an e-MTB during their sporting rides and off-road adventures.
Pedaling assist
The pedaling assistance delivers power proportional to the rider effort and to the selected assistance mode.
Handlerbar throttle
The throttle on the handlebars allows you to put on the gas at any time in a technical passage or to go back uphill.
But how can you accelerate without pedaling?
The LMX 56 has two independent transmissions. A chain on the pedal side and a belt on the engine block side. This patented double freewheel transmission system allows total independence of “bicycle” and “motorcycle” modes.
You can accelerate thanks to the rotating handle in technical passages without activating the bike transmission and the crankset.
This system also greatly limits wear on the pedaling chain, even with 45 km/h of assistance.
We're going to break everything you know about ebikes.
Go faster
- The LMX 56 reaches a top speed of 45 km/h on electric assistance.
- Forget the clamping at 25 km/h as on classic ebikes, and go up a gear.
Go further
- The LMX 56 carries a 1000 Wh battery to follow you on all your outings and cover long distances. Forget the risk of failure!
- Classic autonomy: between 45 and 100 km
- Autonomy without pedaling (accelerator only): between 30 and 40 km
- Battery pack easily removable thanks to the hatch located under the down tube.
Go faster
- The LMX 56 reaches a top speed of 45 km/h on electric assistance.
- Forget the clamping at 25 km/h as on classic ebikes, and go up a gear.
Go higher
- The LMX 56 motor develops up to 2500 W peak power
- 175 N.m of torque at the rear wheel
- The motor and battery blocks are designed and assembled directly at Jonage (LMX brand) in order to offer a unique motorization, adapted to speed bikes.
Go further
- The LMX 56 carries a 1000 Wh battery to follow you on all your outings and cover long distances. Forget the risk of failure!
- Classic autonomy: between 45 and 100 km
- Autonomy without pedaling (accelerator only): between 30 and 40 km
- Battery pack easily removable thanks to the hatch located under the down tube.
Go higher
- The LMX 56 motor develops up to 2500 W peak power
- 175 N.m of torque at the rear wheel
- The motor and battery blocks are designed and assembled directly at Jonage (LMX brand) in order to offer a unique motorization, adapted to speed bikes.
Mobile app: performance is in your hands
The great strength of the LMX 56 is its high level of connectivity, which opens up the field of possibilities in terms of customization and uses.
The user experience has been worked on via an application that connects the pilot to his LMX, giving access to ever more advanced features. App available on Android and IOS.
Dashboard
- Driving data display
- Changing modes directly on the app or via the Smart LED on the handlebars
Motor tuning
Adjustment of assistance modes (level of power, maximum speed, level of torque)
Plan and share your bike rides
- Proposal of routes and cartographic representations
- Export your rides and share them with your friends
A system that adapts to you
Depeding on your profil (weight, configuration, riding mode) for ever more precise data
Enjoy new features
Download all the system updates offered by LMX
Configure your powerful electric bike LMX 56
Copper green
Designed for adventurous spirits, this intense and assertive design makes direct reference to the extreme outdoor performance and solidity of the LMX 56.
Oyster white
In a more urban universe, this design combines technical performance, innovation, dynamism and agility.
The configurator provides the ultimate customization experience around the LMX 56. Enjoy a huge range of options, from frame size to peripherals and accessories.
LMX offers you two colors to choose from for the LMX 56. Immerse yourself in the universe that suits you thanks to their carefully crafted unique styles. Express your personality on the pitch and adopt a look that is sure to set you apart!
| FRAME | High resistance 6061-T6 aluminum. Made In Jonage (69). M size or L size. |
| COLOR | Copper Green or Oyster White |
| WEIGHT | 30 kg (T) – 32 kg (H) |
| DUAL TRANSMISSION | Chain for pedaling side + Belt for engine side and free wheel (patented LMX technology) |
| DOUBLE ASSISTANCE | Pedaling assistance + Throttle at the handlebar |
| MAX SPEED | Electric assistance up to 45 km/h |
| T VERSION (offroad) | Not approved for 45 km/h road : absence of equipment related to approval Use authorized only on private roads |
| H VERSION (street legal) | License plate holder (including luggage rack), front light, handlebar mirror, front/rear mudguards, kickstand (+ kickstand sensor) Street legal 45 km/h – use on paths authorized for 50 cc mopeds |
| TRAVEL | 160 mm front/rear Progressive rear suspension |
| STEERING ANGLE | 64° |
| SEAT TUBE ANGLE | 76° |
| WHEELS | Front : Mach 1 trucky 30 x 29″ Rear : Mach 1 trucky 35 x 27.5″ |
| CRANKSET HEIGHT | 340 mm |
| REACH | 456 mm (M size) 516 mm (L size) |

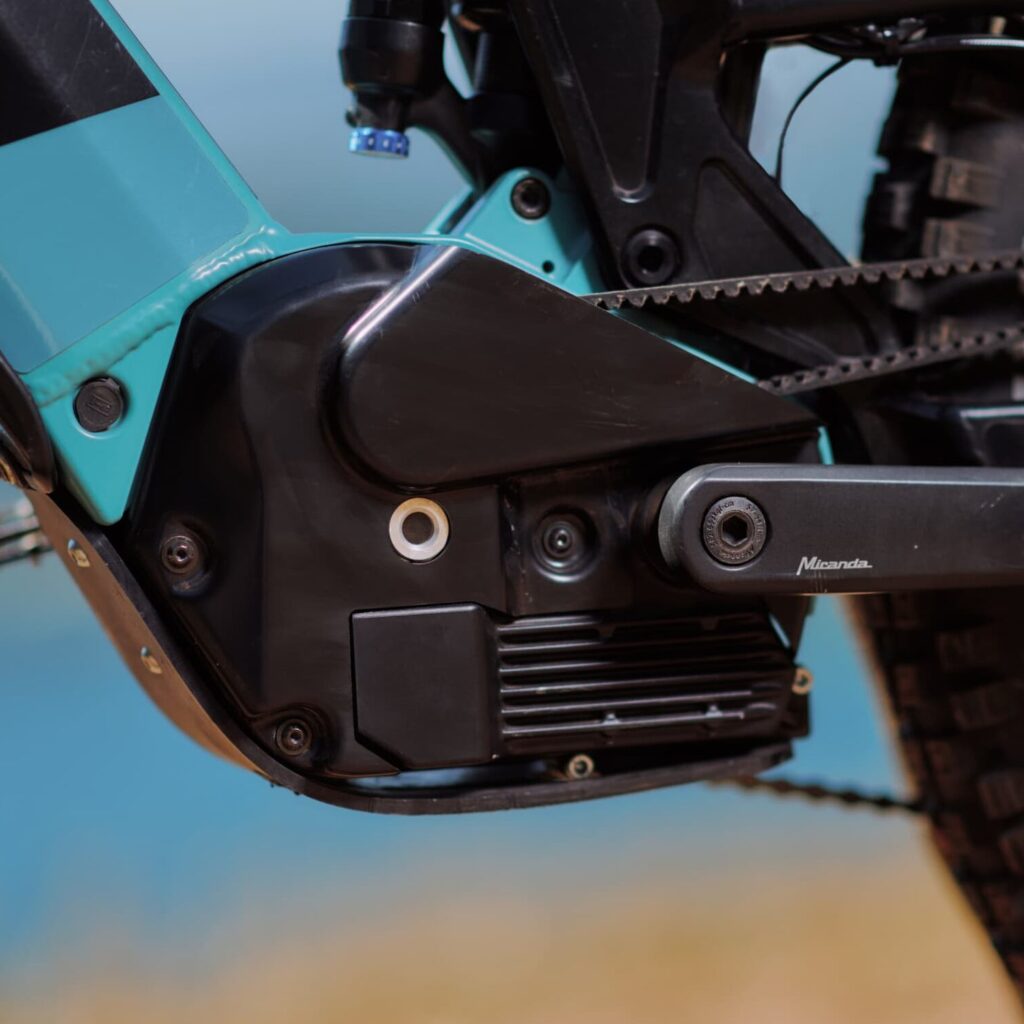

| MOTOR BLOCK | LMX engine Rated power: 2000W Peak Power: 2500W+ Up to 175 N.m of torque at the wheel Torque sensor and controller integrated in the block ISIS standard cranks |
| REMOVABLE BATTERY | LMX-battery 1000Wh – 52V, 20Ah CANBUS communications Removable for direct charging on the LMX 56 or externally via an adapter |
| CONTROLLER | Advanced FOC |
| SMART LED | Handlebar lighting, different colors depending on the mode chosen. Change of the 3 modes thanks to the button under the LED. Battery capacity indicator |
| APPLICATION | Configuration of the assistance modes (motor tuning) Route planning Real-time battery %, real speed, etc. |
| FORK | Formula Selva S – 160mm travel – 35mm diameter OR Fox Racing Shox 38 Float Factory Kashima – 170 mm travel – 29″ – Boost 15x110mm – 38mm diameter |
| REAR SHOCK | Formula Mod – 160 mm travel OR Fox DHX Factory 210x50mm – 160mm travel |
| TIRES | 29” x 2.6 / 27.5″ x 2.8 Schwalbe Johnny Watts OR Schwalbe Eddy Current |
| PERIPHERAL DEVICES | SRAM NX derailleur / Tranzx AL70751 150mm telescopic seatpost OR SRAM AXS GX Eagle derailleur / Rockshox Reverb AXS telescopic seatpost |
| SADDLE | Italia Origine OR Velo Ultimate |
| PEDALS | Standard OR Look Trail Fusion Black |
| CRANKS | 170 mm |
| BRAKES | Formula Cura 4-e – 203 mm – 4 pistons front/rear |
| TRANSMISSION | 12 speeds |
The "Made In France" thoroughly
This speed bike is entirely designed and manufactured near Lyon, at our production workshop located in Jonage.
The LMX 56 frames are made of 6061-T6 aluminum. We carry out all the manufacturing steps in-house, as with the frames of the fast LMX 64 bikes.
Folding, assembly, welding, heat treatment and straightening are all operations that require real industrial know-how.
But we don’t stop there.
The engine and battery blocks are also developed and assembled at Jonage, in collaboration with the SPARK Racing Technology (Formula E) teams.
After the manufacture and assembly of all the elements, comes the assembly stage of the LMX models on our assembly lines. Each LMX is hand-assembled by our team, then checked before final delivery.
This search for the relocation of production responds to the vision that LMX has set itself since the beginning. Design and produce in France innovative and unique speedbikes on the market.
The LMX 56 is a speedbike. Speed bikes are powerful electrically assisted ebikes that can reach a speed of 45 km/h instead of 25 km/h like conventional ebikes. To ride in urban areas or on public roads, a speedbike must be equipped with a registration plate, a certificate of conformity, insurance, and the other equipment necessary for homologation (mirror, front light, honk…). Indeed, an approved model belongs to the category of 50cc mopeds (L1e-B). Its use is therefore prohibited on cycle paths. Wearing an approved helmet compulsory.
The speed bike allows you to travel long distances at a higher speed than a classic VAE. Its great versatility and power allow both urban use for home-work journeys (vélotaf) and sporty use at the weekend.
LMX models are available in a homologated version and in a non-homologated version (offroad) for use on private roads or circuits only. Choose the version that suits you directly on the online configurator or with the advice of our team.
Street legal
Custom assembly
Shipping in Europe
Support in France
