Unleash your daily journeys, revolutionize your urban mobility

Explorer

Bike

The LMX 56H speed bike is the ideal partner for your urban and suburban journeys during the week. This version is approved for all roads in Europe, and can go up to 45 km/h (category L). Its high-performance engine, connectivity and load-carrying capacity make it a perfect two-wheeler for commuting and sporty weekend getaways.

From €8,160

56

Explore the city at high speed

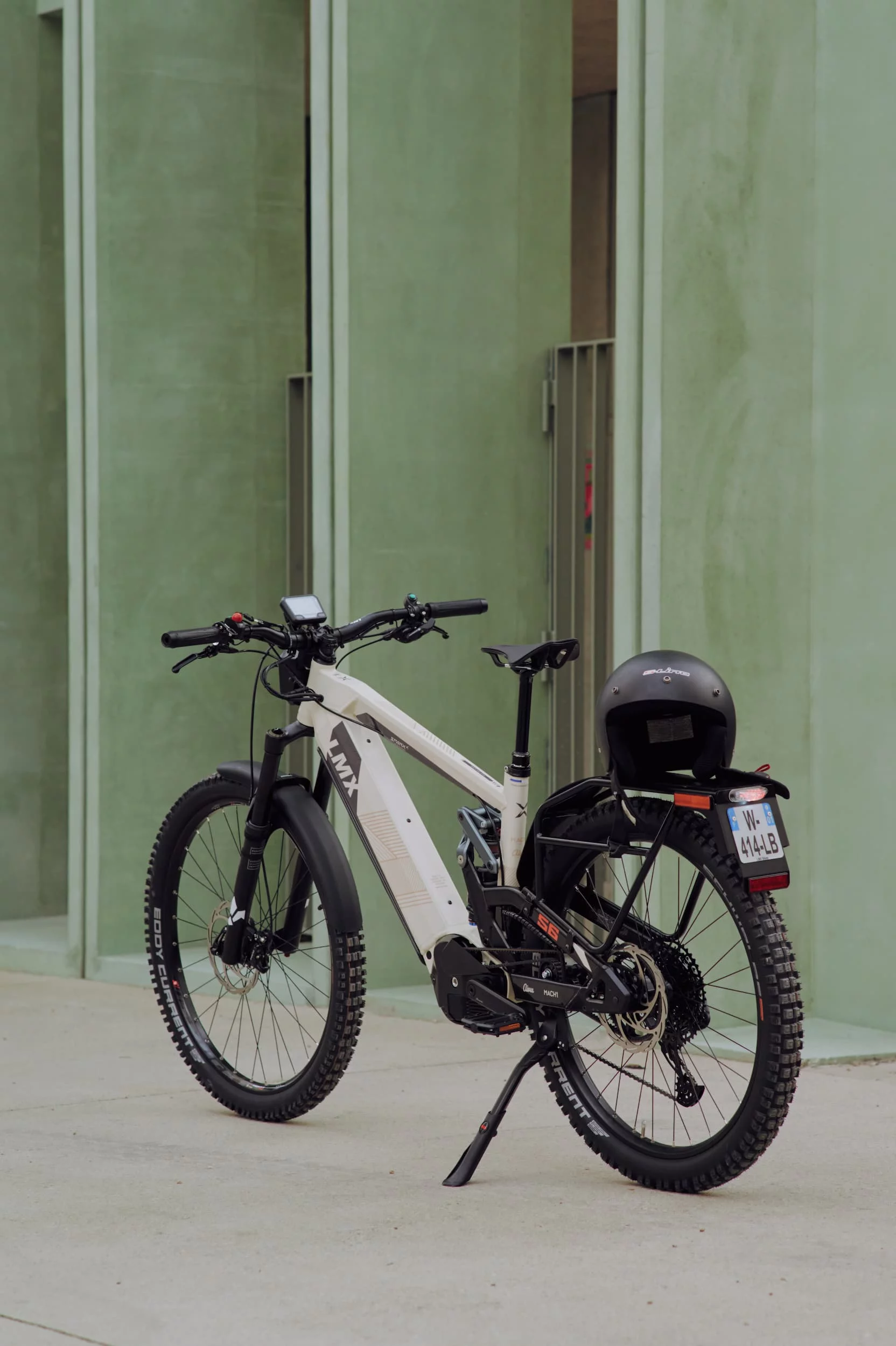

Approved for road use up to 45 km/h (category L1e-B), the LMX 56 is authorized to drive on public roads thanks to its dedicated equipment.

Front/rear lighting, mudguards, rearview mirror, stand, luggage rack, horn, license plate holder, reflectors, you are ready to go on an adventure on your daily journeys.

Push the limits of your travel and save time without breaking a sweat.

Equipments

Throttle

Pedaling assist

Load carrying

up to 30 kg

Mobile

app

Throttle

Pedaling assist

Load carrying

up to 30 kg

Mobile

app

Beat the constraints of urban traffic up to 45 km/h

Technologies

Motor/battery

The LMX 56H allows you to travel long distances at high speed. Its engine offers 2500 W of power up to 45 km/h, and its battery has a capacity of 1008 Wh. This high-performance engine allows you to drive safely and smoothly in urban traffic.

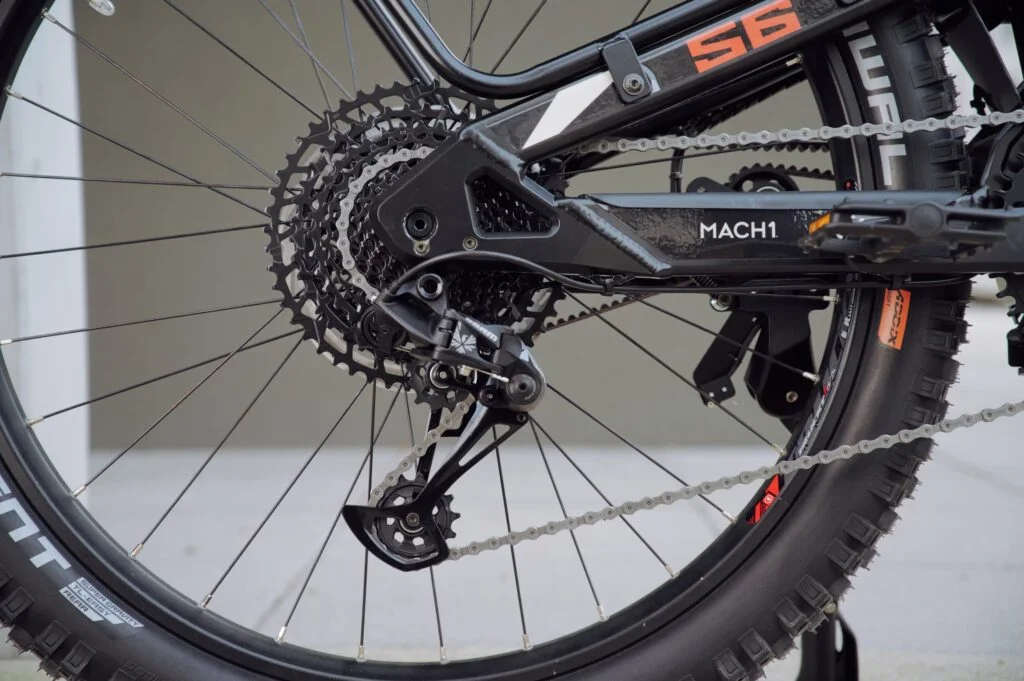

Dual transmission

This speed bike has two independent transmissions. A chain on the crank side and a belt on the engine side. This patented system allows total independence of the “bike” and “motorcycle” modes. The aim is to significantly limit wear on the chain, thanks to the belt.

56

Technical specifications

EngineLMX Bikes proprietary brand
Nominal power2000 W
Peak power2500 W+
TorqueUp to 171 Nm at the rear wheel
CaracteristicsTorque sensor and controller integrated into the block
ISIS standard cranks
Max speed45 km/h (electrical assistance)
Europe categoryL1e-B, approved up to 45 km/h – use on roads authorized for 50cc mopeds
USA / CA categoryClass 2, up to 28 mph | Class I, up to 32 km/h
BatteryLMX Bikes proprietary brand
Capacity1008 Wh – 50.4V, 20 Ah
CaracteristicsCANBUS communication
Removable for direct charging on the LMX 56 or externally via an adapter
AutonomyBetween 45 and 100 km (depending on altitude difference, rider weight, use of the throttle, mode chosen)
ChargerYes
Max charging time4h
Smart ledHandlebar lighting, LED color depending on the chosen mode
Change the 3 modes using the button under the LED
LED battery capacity indicator
Mobile appSetting assistance modes (motor tuning)
Route planning
Real-time battery %, real speed, etc.
Personalization of the rider profile
Material6061-T6 aluminum. Made in France
Frame sizeM < 180cm / L > 180cm
ColorsCopper Green / Oyster White
Luggage rackSteel
LMX weight32 kg (street legal version)
TravelProgressive rear suspension with links. 160mm front/rear
Steering angle64°
Effective seat tube angle76°
Bottom bracket height340 mm
Reach456 mm (M size)
516 mm (L size)
TiresFront : Mach 1 trucky 30 x 29″
Rear : Mach 1 trucky 35 x 27.5″
ForkFormula Selva S 160 mm travel 35 mm diameter / FOX Racing Shox 38 Float Factory Kashima 170 mm travel 38 mm diameter (orange or black)
Rear shockFormula Mod 160mm / FOX DHX Factory 160 mm
Tires I DimensionsSchwalbe Johnny Watts / Schwalbe Eddy Current (Tube Type or Tubeless) I 29” x 2.6 / 27.5″ x 2.8
Telescopic seat postTranzX 150 mm / RockShox Reverb AXS
Pedal transmissionSRAM NX 12V / SRAM AXS GX Eagle 12V
Motor transmissionBelt
BrakesFormula Cura 4-e 203 mm – 4 pistons front/rear
SaddleItalia Origine / Velo Ultimate
PedalsStandard / Look Trail Fusion noir
Cranks170 mm
Equipment street legal versionFront/rear lights, rearview mirror, horn, kickstand with sensor, license plate holder including luggage rack, reflectors
Quadlock Phone Holder
External charging adapter
Panniers x 2 (20l)
Extra battery

From €7,800 to €11,286.40 (depending on the chosen configuration)

Size guide

The LMX 56 is available in two frame sizes.

The M frame is recommended for people under 1.80m. The L frame is recommended for people over 1.80m. The choice of size is also made according to your riding style and your comfort preferences.

Frame colors

Copper Green
Oyster White

Designed and manufactured in France

Aluminium chassis

Authentic frames made in France. LMX Bikes designs and produces the 6061-T6 aluminum frames of its speed bikes directly in its workshops. Since 2016, our expertise in this field has been at the heart of our business. Each step, from machining to welding to heat treatment, contributes to the manufacture of high-quality 6061-T6 aluminum frames, entirely made in France.

Proprietary motorization

Engines and batteries designed and assembled in the Rhône, France. We develop and manufacture in-house motorization solutions capable of reaching 45 km/h. Discover revolutionary electric performances like never before. This motorization is made possible by two patents relating to the double transmission.

The LMX 56 is a speedbike. Speed bikes are powerful electrically assisted ebikes that can reach a speed of 45 km/h instead of 25 km/h like conventional ebikes. To ride in urban areas or on public roads, a speedbike must be equipped with a registration plate, a certificate of conformity, insurance, and the other equipment necessary for homologation (mirror, front light, honk…). Indeed, an approved model belongs to the category of 50cc mopeds (L1e-B). Its use is therefore prohibited on cycle paths. Wearing an approved helmet compulsory.

The speed bike allows you to travel long distances at a higher speed than a classic VAE. Its great versatility and power allow both urban use for home-work journeys (vélotaf) and sporty use at the weekend.

LMX models are available in a homologated version and in a non-homologated version (offroad) for use on private roads or circuits only. Choose the version that suits you directly on the online configurator or with the advice of our team.

Want to go off-road?

Do you prefer offroad and natural worlds to urban landscapes? Discover the LMX 56T, designed for exceptional off-road performance.
